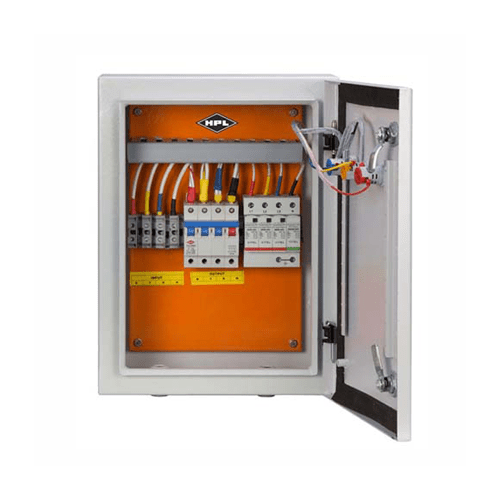

AC Distribution Board (ACDB)

ACDB is an important part of SPV system. It gives extra protection to the system in case of failures on the load side. ACDB is made up of breaker, isolators, voltage, and current monitoring, etc. To ensure maximum protection to the sophisticated electronic equipment, It has provision for surge protection in the box along with fuses. Also, ACDB has an energy meter which helps you to know how much energy you are using or withdrawing from solar energy. AC Distribution Box incorporates 4 pole MCB. MCCB, terminals, voltage and current monitoring, etc.

LIST OF RECOMMENDED MAKES OF MATERIALS
S.NO. EQUIPMENT DESCRIPTION
Low Voltage (433V) SYSTEM:
MAKES OF EQUIPMENT.
1 M.V.Panel Manufacturers Fibox
2 Air Circuit Breakers Siemens / ABB /Schneider/L&T
3 Moulded Case Circuit Breakers Siemens / ABB /Schneider/L&T
4 MCB’s, ELMCB and ELCB’s Siemens / ABB /Schneider/L&T
5 Current Transformers AE/RISHAB/NEWTEK
6 CT Test Link Elmex type CST / CONNECTWEL
7 Meters CONSERVE / SECURE/L&T
8 Control Fuses Siemens / BUSMAN
9 Indicating Lamps, Push Buttons. TEKNIK/ESSEN.
10 Terminal block Elmex type CST / equivalent
11 Wires Finolex / Polycab/ RR/Apar

Description

ACDB is an important part of SPV system. It gives extra protection to the system in case of failures on the load side. ACDB is made up of breaker, isolators, voltage, and current monitoring, etc. To ensure maximum protection to the sophisticated electronic equipment, It has provision for surge protection in the box along with fuses. Also, ACDB has an energy meter which helps you to know how much energy you are using or withdrawing from solar energy. AC Distribution Box incorporates 4 pole MCB. MCCB, terminals, voltage and current monitoring, etc.

LIST OF RECOMMENDED MAKES OF MATERIALS
S.NO. EQUIPMENT DESCRIPTION
Low Voltage (433V) SYSTEM:
MAKES OF EQUIPMENT.
1 M.V.Panel Manufacturers Fibox
2 Air Circuit Breakers Siemens / ABB /Schneider/L&T
3 Moulded Case Circuit Breakers Siemens / ABB /Schneider/L&T
4 MCB’s, ELMCB and ELCB’s Siemens / ABB /Schneider/L&T
5 Current Transformers AE/RISHAB/NEWTEK
6 CT Test Link Elmex type CST / CONNECTWEL
7 Meters CONSERVE / SECURE/L&T
8 Control Fuses Siemens / BUSMAN
9 Indicating Lamps, Push Buttons. TEKNIK/ESSEN.
10 Terminal block Elmex type CST / equivalent
11 Wires Finolex / Polycab/ RR/Apar
